#ASR #TTS #LLM #RAG #T2I #STT

#Kokoro82m #chagpt #openai-realtimeAPI #bge-m3 #qdrant #ComfyUI

Why I make it?

These days open sources that about voices are become very high quality.
So I decided to start integration project text and voice.

This page notes why I choose it and the concerns I had while implementing it, troubleshooting, informativity tips, etc.

Project Flow

1. Human start conversation by voice
2. ASR (Automatic Speech Recognition) convert voice -> text
3. Converted text is sended to LLM(Large Language model)
4. LLM create response
5. TTS(Text to Speech) make response to voice
   1. save keyword make whole coversation to embedding
   2. remember keyword retrieve from vectorDB
   3. draw keyword draw image from local comfyUI server

Used model

• Speach to Text
  • Systran/faster-distil-whisper-large-v3
    • required average 2.5GB VRAM (fp16)
• TTS
  • Kokoro-82M
• LLM
  • openai gpt4o-mini
• RAG
  • Qdrant
• Text to Image
  • tensorart/stable-diffusion-3.5-large-TurboX
    • finetuned model for inference speed
    • support natural language
    • lack of detail
    • Q8 required average 12GB VRAM
    • Q4 required average 8GB VRAM

Model Selection

Speach to Text, ASR (Automatic speech recognition)

factors of consideration

• vram usage
• speed
• multilingual
• WER

Reddit User Opinions -> After checking, it looks like the best model at the moment is the whisper model.
Explore Top 10 Models on the Arena Leader Board

first choice famos model openai/whisper-large-v3-turbo

check vram usage , speed, WER user benchmark

-> Considering the inference speed, I decided that fastwhisper v3 was the most appropriate choice.

TTS (Text to Speach)

Candidates

• https://huggingface.co/spaces/hexgrad/Kokoro-TTS
  • kokoro wrapper https://github.com/remsky/Kokoro-FastAPI
  • no support voice clone. choice voice in model
  • very high inference speed
  • comfyui workflow https://github.com/stavsap/comfyui-kokoro

TTS Arena
https://huggingface.co/spaces/Pendrokar/TTS-Spaces-Arena

-> I chose kokoro82M because it has an attractive enough size of 82M and a wrapper.

Test results show that it is fast enough, taking about 300ms to 500ms for inference.

RAG (Retrieval-Augmented Generation)

We need to think about the vector DB and the embedding model for RAG
Consider.

factors of consideration

• indexing and retrival speed
• cost
• open source
• local support
• community

The candidates for the search results are Faiss and Qdrant.
The general opinion seems to be that Qdrant is better in terms of quick reasoning speed and high performance. So, I chose Qdrant.

Qdrant Analysis in Blog Post

After using Qdrant, I found that its free cloud plan and user-friendly UI make managing persistent data very easy

Vector DB

caution: when using UI qdrant server, The way local and ui are mixed is quite problematic at the moment

Roughly, there were three options for continuously managing the vector DB.

• local cli
• local ui
• qdrant cloud

Here, considering the speed and cost, I tried to utilize the local cli to leverage the existing local embedding model and use the local ui for easy management.
However, there are too many problems to integrate as if the ui itself was a later incorporated project. There have been several problems, but for local cli, a directory called collection is created and the collection is stored, but for local ui, a directory called collections and config are created.

In other words, it didn't seem like the ones created in ui were unconditionally managed by ui and the existing ones created by the cli were used in ui.

So in conclusion, I decided to use qdrant cloud because the test results only consume 1-2 seconds and support quite a lot of requests with a free plan.

For your information, my environment has caused a path problem in Windows called gitbash.

Imbedding model

Considerations of the embedding model will include the price and the dimension and max-token and inference speed and whether is open-source.
In other words, we use open source if possible, and if there is a model that is high enough quality and easy to use, we can use external API and looked for it.

In my first attempt, I tried to find the one with the highest accuracy! so I used a high ranking model on the arena board.

embed-qa-4

• Parameter Count: 335 million
• qdrant with nvidia # nvidia/embed-qa-4
• qdrant inference docs https://qdrant.tech/documentation/embeddings/nvidia/
• inference docs of nvidia https://docs.api.nvidia.com/nim/reference/nvidia-embedding-2b-infer

Fast and accurate enough model, but give up due to 1000 limitations on personal accounts (you can get up to 5000 extra but it's difficult to increase more than that)

BAAI/bge-m3

• https://build.nvidia.com/baai/bge-m3/modelcard
• parameter 568M

After looking at reviews of multiple local models and checking the leader board
I chose bge-m3, especially the size of the parameter.
For other models, it is usually 1b 7b

In addition, 8192 is a long sequence length, and it seems to be easy to manage as it is managed by a famous and large company

reddit opinions

embedding arena leaderboard

others candidates

• https://huggingface.co/intfloat/multilingual-e5-large-instruct
• https://huggingface.co/nomic-ai/nomic-embed-text-v2-moe?utm_source=chatgpt.com

Graph RAG

I looked up graph RAG to upgrade RAG a bit more.

In the case of traditional RAGs, the more data you have, the longer it costs or takes to retrieve, because it compares the matching rate with all stored vectors and request vectors.

The problem is that the longer the conversation, the lower the data match rate. This is because my storage method is to store all the record texts we've talked about so far when we store vectors.
For example, in 20 conversations, my favorite color is blue sky blue, and in 3 conversations, my favorite color is blue like sapphire.

If you have a vector for both conversations, and the query is "Exactly my favorite color?" the latter vector can have a high concordance rate.

Graphrags are much more complicated than regular RAG.
Because you need to create and manage the Knowldege Graph.

There are several ways to create these Knowldege Graphs, but the approximate process is as follows.

Create Knowledge Graph

1. Decompose docs into chunks.
2. Extract the entity and relationship through LLM for each decomposed chunk.
3. Create a knowledge graph based on this information.

Create Vector DB
4. When you are embedding documents, set the key-value.
5. In this Key-Value, the Key value is a value to be accessed by the knowledge graph and uses a value such as hash or UUID of the node.

Query
6. A user query to program
7. Finds the entity in that query.
8. Find the matching entity in the knowledge graph (it can be a single node or multiple nodes)
9. Use the key-value to find the information associated with the node in the vector DB and decode it to obtain the text and add it as the context.
10. LLM answers with context.

To summarize, in addition to using the existing RAG, we find out which vector to embed through the knowledge graph.

Here, to create and manage the knowledge graph, a lot of computing resources are consumed by applying LLM to all documents and even embedding. That's why graph RAG is difficult when you think about management.

Examples include Microsoft's graphRAG or ZEP's graphiti.
For large amounts of static data, graphRAG is appropriate, and graphiti is appropriate when changes in time are important.
GraphRAG presupposes implementation in a Azure environment in an official document, which is extremely complex and costly.

So in conclusion, it would be better to use rerank due to cost and management complexity.
So at the moment, the question of whether I should do it was the conclusion at first, but...

I found new RAG Architecute LightRAG
https://www.youtube.com/watch?v=5EmRZcJIfnw
Impressively, experimental results show that LigthRAG is less than 100 tokens, compared to 610,000 retrive tokens in microsoft graphRAG.

report about LightRAg is here

Text to Image

The text to image model is much trickier than other models when it comes to selection. As the cost is high, it is difficult to find the T2I model that has the biggest VRAM constraints and understands natural language.
You also have to consider the style that the painting body supports (i.e., I thought it was around anime painting at first, so it was difficult to use a model that only supported realistic). And since the inference speed is the longest, this should be considered as well

When I searched for other candidates who understand natural language, they were as follows.

opensource: Flux, SD 3.5, Lumina
API services: dall-e-3 , imagen

At first, I tried to use a noobAI model that understands natural language a little, but I couldn't understand it properly

Since then, we've been at two crossroads.
One is to process the user's request once in the middle as a prompt for the model to process the image model.
Another one is model that supports natural language itself.

The first method is used for models that have high quality but do not yet support natural language, such as a tag method such as "blue sky and warm beach" when the user asks to draw blue sky, warm beach.

When considered UX, I decided that it would be appropriate to use a model that supports natural language. And API services are expensive, so we exclude them in the end
FLUX or Lumina have good accuracy but fail due to high VRAM consumption and slow inference speed .

In conclusion, I decided to write SD3.5
And there are models large, large turbo, medium models.
For high natural language understanding and inference speed I chooselarge turbo

But recently, a fine-tune model with 6x faster inference speed came out and I tried it. tensorart/stable-diffusion-3.5-large-TurboX
It's about 18 seconds per chapter, so it's a speed and natural language processing ability that's convincing enough.
information on reddit

prompt guide
https://stability.ai/learning-hub/stable-diffusion-3-5-prompt-guide

T5Encoder 256 max tokens
CLIPS G and L 77 max tokens

Backend Server Configuration

Websocket + FastAPI

There is reference server config in RealtimSTT project.
This configuration make using AudiotoTextRecorder to recording from web

update: Using singleton pattern for imbedding model and realtimeSTT engine initialize

Initial configuration occurs duplicate call when start sevlrver, even whenever connecting established.

For making once, create server state class file and import it.

update: tts chunk by new line

Previously, voice conversion was performed after all input outputs.
So for big inputs, the waiting time is long and I don't feel like I'm talking.

\n As a standard, it is received in chunks and converted into output.
system message tell them to distinguish the line by \n

rollacked update: using openai realtime API

I tried to change it to the openai realtime API instead of the local tts I used before. The reason I tried to change it was because of its naturalness. First of all, I tried to change it because the function of interrupting in conversation and the tone and accent are more natural and changeable, unlike the existing method.

However, in conclusion, I implemented it, but I rolled back again using the existing method of use. I somehow solved the technical problem, but the cost was very very expensive.

It's a shame that I rolled back in the end, but I've learned to solve problems that other people might be confused about while implementing, so I'm recording it.

Settings for getting transcripts from openai realtime API
https://community.openai.com/t/input-audio-transcription-in-realtime-api/1007401

add whisper model

    body: JSON.stringify({
      model: "gpt-4o-mini-realtime-preview-2024-12-17",
      voice: "shimmer",
      input_audio_transcription: { model: "whisper-1" },
    }),

getting transcript from openai reailtime API user audio transcript event is conversation.item.input_audio_transcription.completed
https://platform.openai.com/docs/api-reference/realtime-server-events/conversation/item/input_audio_transcription

Eventually, this text goes into the query. So if you received a strange answer in the conversation, you might want to check what the text of this voice input is like.
For example, if you pronounce it as read, but the transcript is made with lead, you can check the situation

{
    "event_id": "event_2122",
    "type": "conversation.item.input_audio_transcription.completed",
    "item_id": "msg_003",
    "content_index": 0,
    "transcript": "Hello, how are you?"
}

Get chat completion result text
event is "conversation.item.created"
https://platform.openai.com/docs/api-reference/realtime-server-events/conversation/item/created

The content of the message, applicable for message items.
Message items of role system support only input_text content
Message items of role user support input_text and input_audio content
Message items of role assistant support text content.

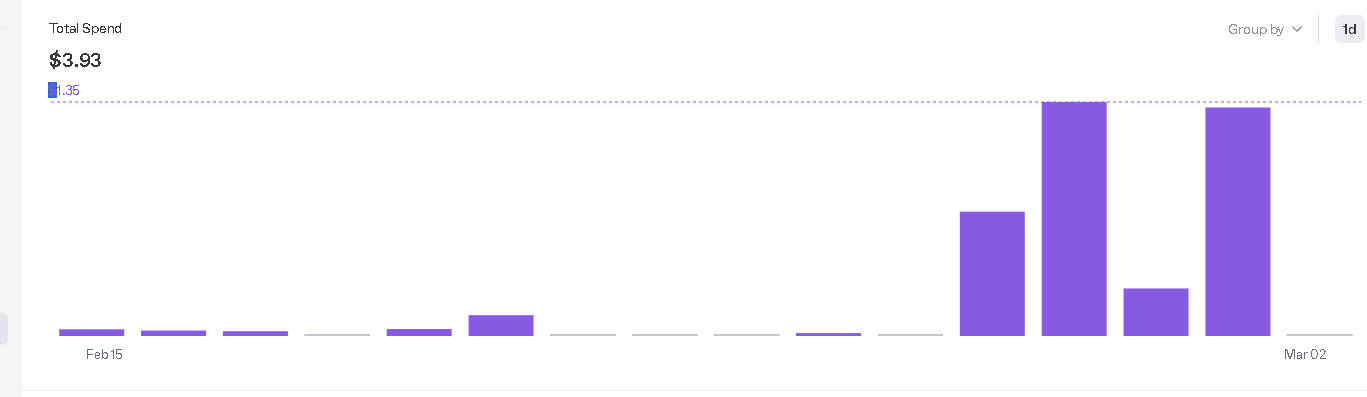

Oh, that's too expensive. API costs... Realtime API Audio (including voice input and output):

The current code uses the GPT-4o model through the Realtime API, with prices as follows:

• Text input: $5.00/1M token.
• Text output: $20.00/1M token.
• Audio output: $80.00/1M token.

Especially, I can see that the output token came out this much even though it wasn't that much(The result of playing for about an hour)

Frontend Server configuration

after I got this error, I change file tts audio file extension from pcm to mp3

VoiceAssistantClient.jsx:239 Audio Decoding Error: EncodingError: Unable to decode audio data
(anonymous)@VoiceAssistantClient.jsx:239
localhost/:1 Uncaught (in promise) EncodingError: Unable to decode audio data

ComfyUI server configuration

Using ComfyUI local program. Generating image required pretty high cost usage. So using own GPU is recomend

important point is understanding how to request call to comfyui api server.
first we can get comfyui workflow JSON file from server.
second we can see api usage from comfyui server file
Two parameters are important.
prompt and prefix

prompt will be changed by user input.
prefix is path for download image

when quering to server -> use /prompt to JSON format
Check ongoing request queues -> from /queue can view
Check created result with meta data -> in history path

Download image

/api/view?filename={prefix}_00001_.png

Integrate Web Application with ComfyUI

first create comfyui.py and test it works.
second integrate backend with comfyui it works.
third frontend can call to back end

using draw keyworkd
frontend string(keyword draw) -> backend call to comfyUI(8000port) -> comfyUI

Thinking point

A collection of helpful tips I learned while implementing this agent project

requirements

• Minimum token length is 1024
• Check prefix whole conversation
  benefit
• If matched inference speed and pricing lower up to 80% and 50%

Don't update like this

# Don't update like this
system_content = f"""{character_personality}

Memory Context:
{current_memory_context if current_memory_context else "None"}
"""

After Update
add memoy context to user question. Initialize value after query.

        try:
            # Add user message to conversation log
            session["conversation_log"] += f"\nUser: {user_text}\n"

            # If memory search is needed
            if include_memory and self.memory_enabled:
                print("Searching previous conversation memories...")
                new_memory_context = await self.memory.retrieve_context(user_text)

                if new_memory_context:
                    print("Found relevant previous conversations.")
                    session["memory_context"] = "\n" + new_memory_context
                else:
                    print("No relevant previous conversations found.")

            memory_prefix = ""
            if session["memory_context"]:
                memory_prefix = f"Here is relevant context from past conversations:\n{session['memory_context']}\n\nMy question/request is: "
			session["memory_context"] = ""
